Using suction cups is a lifting technique of many possibilities. You can, for example, handle board materials or concrete slabs, open bags, pick electronic components, label and hold objects. But different applications need different requirements. Piab offers one of the market’s widest ranges of suction cups so that each application will have its own solution. You are welcome to tell us about your needs. We are your partner whatever your needs might be.
Flat
High friction suction cup for flat surfaces. For lifting products such as cardboard, glass and metal sheets.
Flat Concave
Designed for flat and curved surfaces

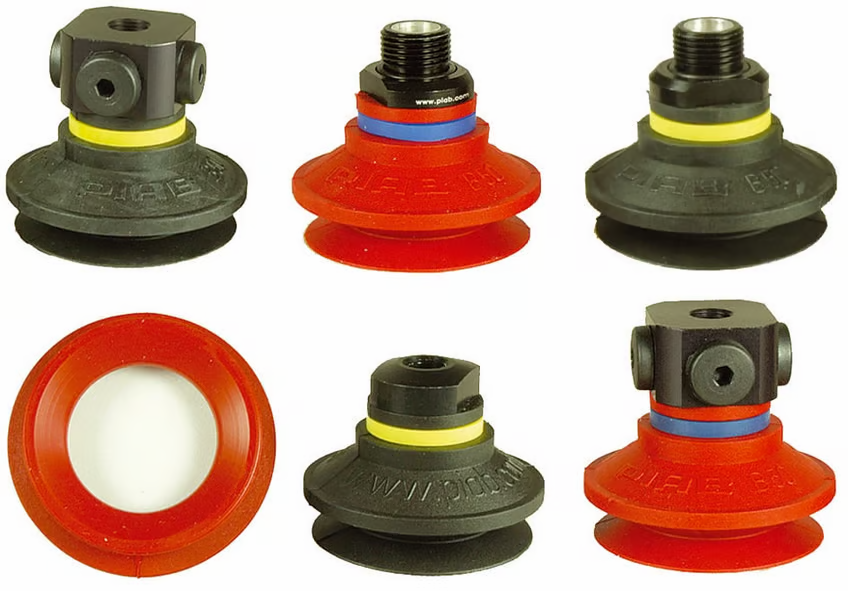

Bellows
Suitable for height differences and slightly uneven or curved surfaces.
Multibellows
For height differences, slightly curved planes and uneven surfaces.
Deep
Used for curved and irregular surfaces. Can lift even over corners and edges. Not suitable to use on flat surfaces.
Oval Concave
Suitable for handling long objects with flat or curved surfaces. Thick, durable lip.
Universal
Forms well on flat or slightly curved surfaces.
Oval Bellows
The oval suction cups are suitable for handling of long and narrow objects and surfaces when maximum lifting force is desired.
Oval Flat
Oval suction cups are specially suitable for long and narrow objects.
Deep Concave
A good choice for domed surfaces, both convex and concave. Provides a good grip over the edges and corners.
Rectangular Bellows
The rectangular suction cups are recommended for handling of long and narrow objects and surfaces when maximum lifting force and grip are desired. The rectangular bellows suction cups are especially suitable for products in plastic flow packs, such as candy bars, and when level compensation is desired.
Foam
Suitable for heavy textured surfaces, objects with relief/embossing and generally very rough surfaces, such as raw wood or structured shower plexi glass. It can handle up to a few mm in height differences with very good sealing capability. The material of the rough surface lip is a long-wearing natural foam rubber that is free from silicone.
